Ensure the Router is connected from WAN (If no WAN port, connect to LAN 1) on Router to GE1/LAN1 on ONT.(Unless we told you GE1/LAN1 is not the active port)

Logging into the gateway:

1. Ensure your device is connected to the Router (preferably via cable)

2. Open a web browser

3. Type the following in the address bar at the top: fritz.box

4. If the first time you have logged in, then it will not require a

5. Select: Skip This Step and Continue

6. This should then give access to the routers user interface

How to add correct settings:

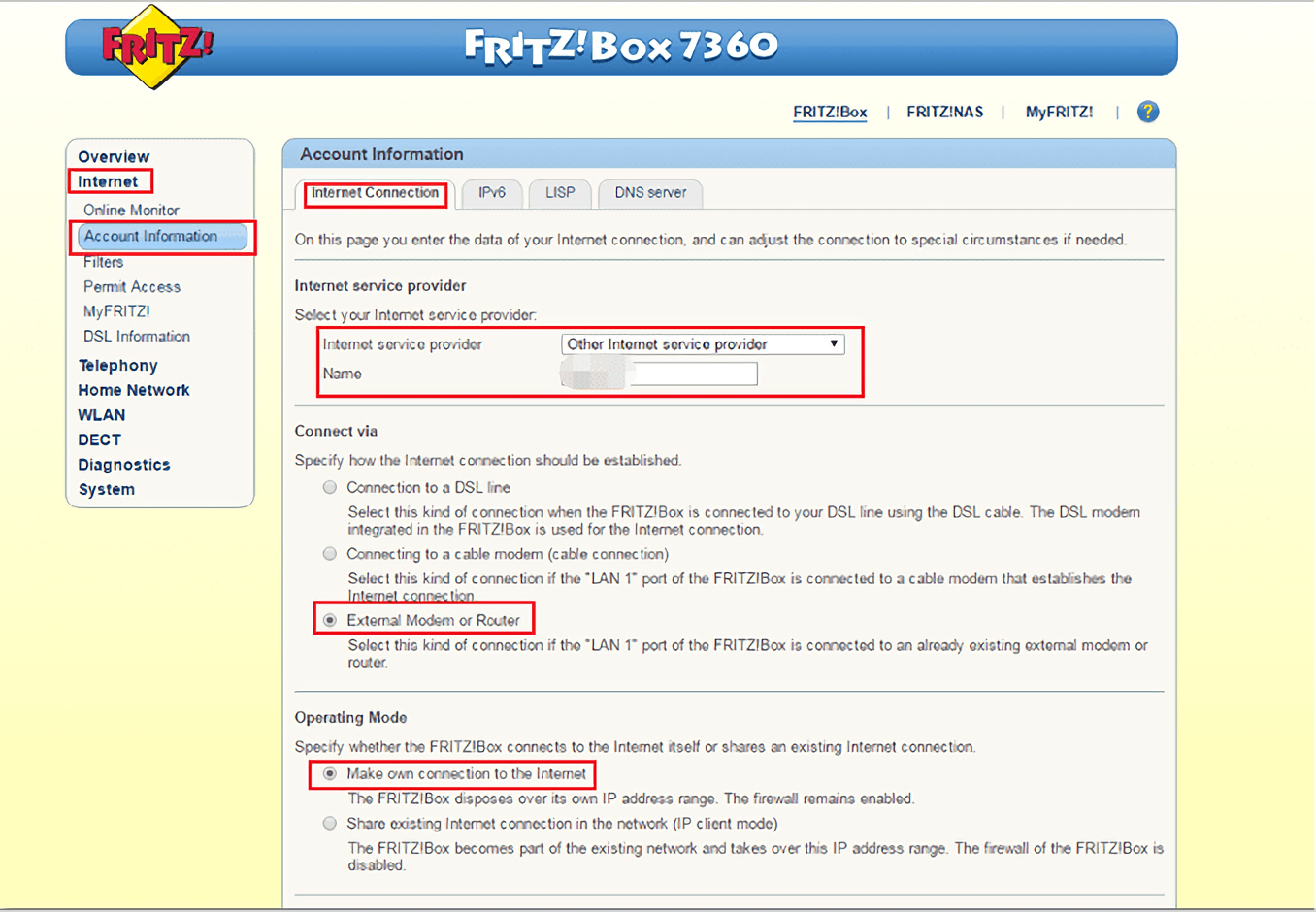

1. From the menu on the left select: Internet

2. From the sub-menu select Account Information

3. In the page locate the Internet Connection tab

Ensure the following settings are changed:

1. Internet Service Provider: Other

2. Name: Leave as blank or just enter Hotshot

3. Connect Via: External Modem or Router

4. Operating Mode: Make Own Connection to the Internet

Click here for an enlarged pic

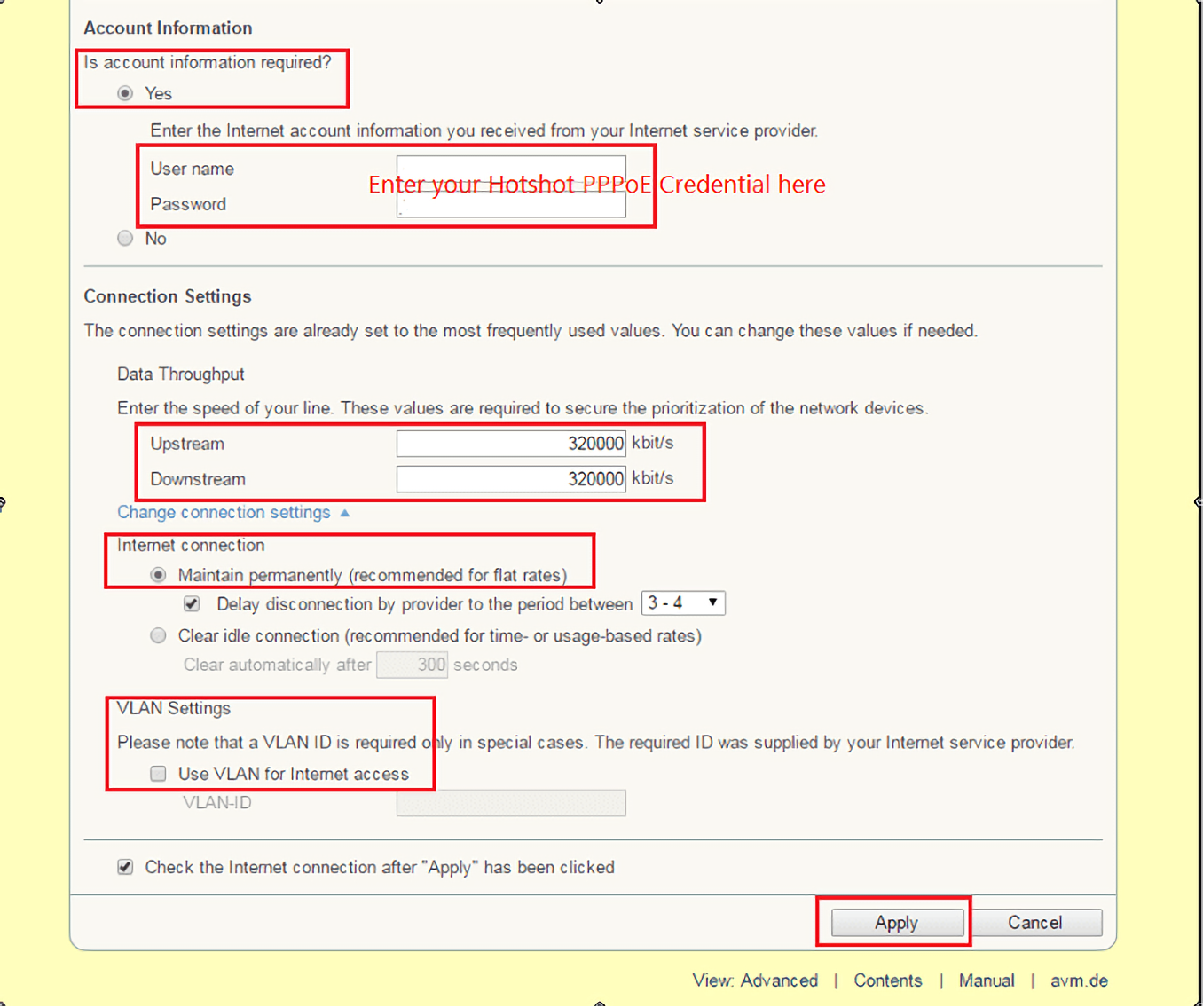

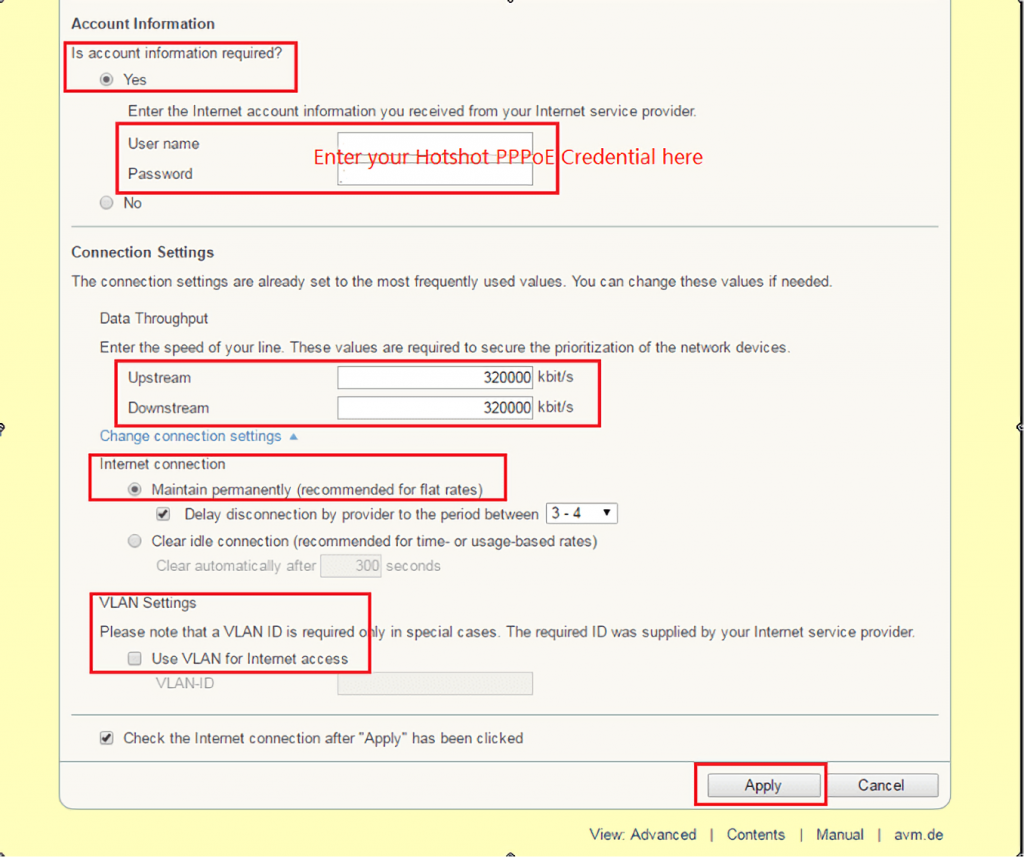

5. Is Account Information Required?: Yes

6. Username: HotShotFibre

7. Password: UrDa8est

8. Upstream: 320000kbit/s

9. Downstream: 320000kbit/s

10. Select: Change Connection Settings

11. Maintain Permanently: Ticked

12. Use VLAN for Internet Access: Unticked

13. Check the Internet connection after “Apply”: Ticked

click here for an enlarged pic

14. Click: Apply

15. Click: Submit

You should now be connected to Fibre!

Still need further assistance? No worries! Send us an email or online chat with someone.
